CPC6000 Deburring Machine

Robust Power, Uncompromised Precision

The CPC6000 is United's powerhouse of a mass finishing machine. It combines the simple operation of United's other machines while offering unmatched power without sacrificing precision and consistency. Parts as long as 30" can be processed with ease and precision. Each barrel can be divided into as many as 10 compartments, providing the versatility to process a wide variety of parts. The CPC6000 can be equipped with our automated media and compound fill system as well as United's advanced media elevator.

Features


The CPC6000 Mass Finishing System is the larger counterpart of the CPC4000. With 50% more capacity and the ability to process parts as large as 10” x 30”, this powerful machine can handle heavy parts with ease. It is available in semi-automated (CPC6000) and fully-automated (CPC6000FA) configurations. The CPC6000 comes standard with a PLC, touchscreen controls, and an internal rinse and separation system. Each urethane barrel can be divided into up to 10 compartments and can be adjusted to meet a myriad of deburring and mass finishing needs. The CPC6000 & CPC6000FA are ideal for high volume and heavy-duty processes.

The drive system in the CPC6000 is powerful and robust. and is composed of heavy-duty chains to eliminate stretching. Power locks prevent slippage or premature wear on sprockets. United's drive system is durable and easy to maintain. All maintenance can be performed by removing a side panel with just 4 screws.

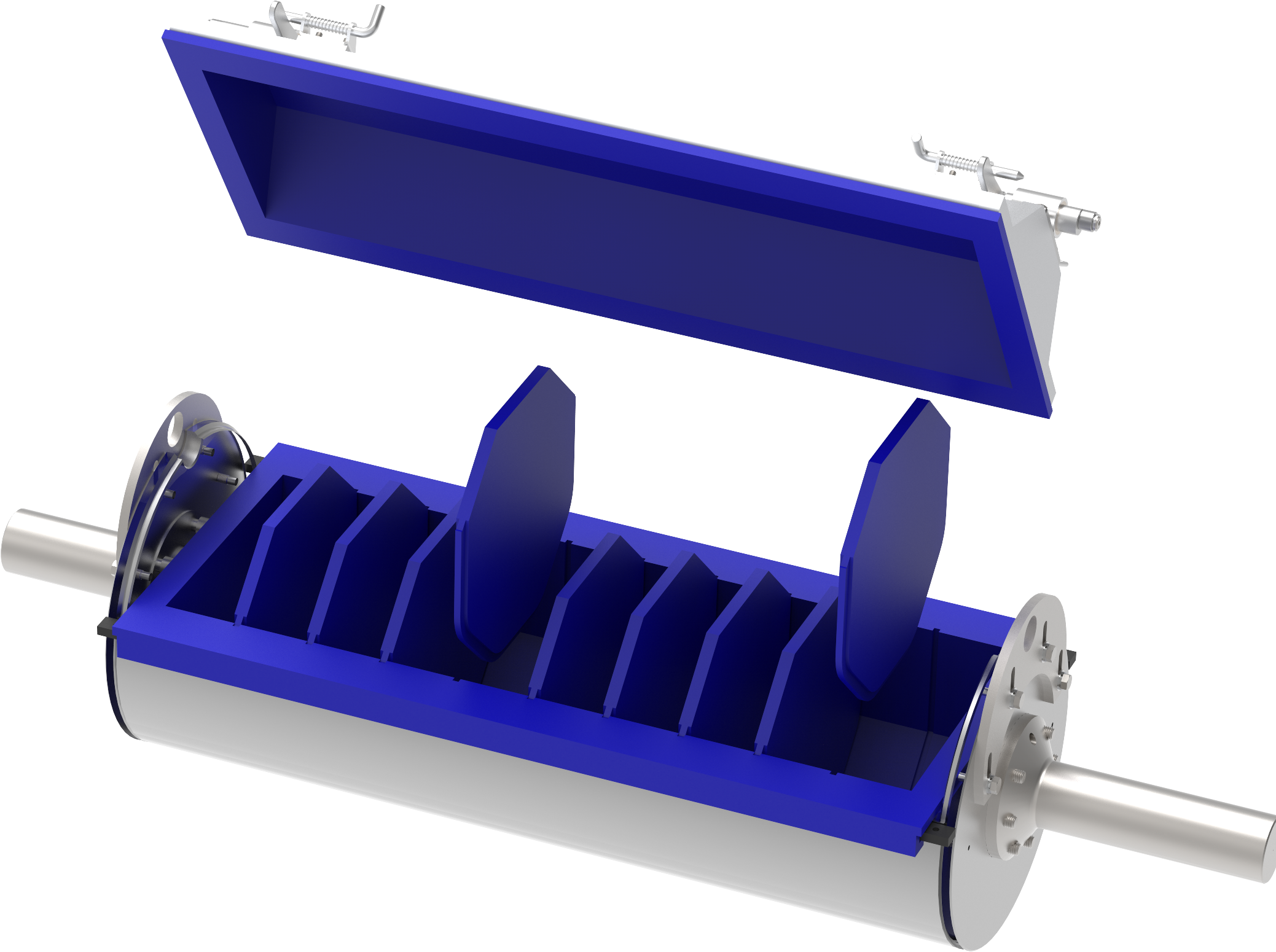

Barrels on the CPC6000 are longer and deeper than the CPC4000, offering 50% morecapacity and habing the spacer to process larger parts. The use of an injection-molded urethane liners allows the customer to replace barrel liners quickly with minimal down-time. Cradles can be fitted with dividable liners. These liners contain slots for 9 dividers which create up to 10 compartments within each barrel.

The CPC (Computerized Process Controller) is capable of storing a large amount of process information such as: types and amounts of media and compounds, maximum number of parts per barrel, loading instructions, and cycle time and turret RPM.

The CPC6000's automated rinse and separation system separates and rinses parts and media through the use of interchangeable stainless steel separation screens which can be ordered in different sizes and be easily changed. The CPC6000 eliminates the need to remove barrels from the machine to access parts and media.

An optional parts separation lid is available.

Touchscreen Controls

  • User-friendly touchscreen display.

  • Process storage capabilities.

  • Process countdown timer.

Safety

  • Two-handed jog operation.

  • Door lock prevents door from being opened while machine is running.

  • Emergency stop button.

Variable Speed

  • Up to 175RPM

  • Process versatility.

  • Gentle on delicate parts.

Barrel Liners

  • Divided option available, standard.

  • Easy relining - no need to disassemble machine.

Fully Integrated Motor Controls

  • Easy to operate.

  • Safe - operator has no access to line voltage.

  • Improved motor protection.

Removable Body Panels

  • Easy access for maintenance.

  • Replaceable panels, no need for bodywork or welding.

  • Easy cleaning.

Stainless Steel Construction

  • Prevents corrosion from moisture.

  • Equipment lasts longer.

Urethane Barrels

  • Greater traction increases energy transferred to the media.

  • Greater process efficiency.

  • Improved heat resistance.

Barrel Locks

  • No tools required to open barrel.

  • Increased operator convenience.

  • Reduced reloading time.

Warranty

  • Up to 3 years, determined by component type.

Complies with ANSI/NFPA 70 and NFPA 79 Codes UL Approved

  • Nationally accepted safety standards.

  • Trusted safeguards for operators and equipment.

  • Standardized design.

Specifications

Total Capacity

6 Cubic Feet | 168 Liters


Barrel Capacity

1.5 Cubic Feet x 4 Barrels


Barrel Dimensions

D 10” x W 30” (internal)


Machine Dimensions

D 75” x W 102” x H 76”


Max Capacity

10, 2½” Compartments per Barrel, 40 Total


User Interface

Touchscreen with Process Storage


Main Drive/Motor

25HP, Inverter-Controlled, Three-Phase


Turret Speed

0-175 RPM, Fully Adjustable


Operating Volume

~85 Decibels


Construction

304 Stainless Steel


Power Requirements

380VAC-480VAC, 50/60Hz, 3Ø, 30A UL certified


Water

Required for fill hose.


Compressed Air

80-100psi


Dry Floor Compatible

Yes


Warranty

Up to 3 years, determined by component.


Options

Extra Barrel Liners
Separating Barrel Lid
